By Tanmay Mane
“The future is not something we enter. The future is something we create.”
This profound quote reminds us that innovation is not a passive process, but an active pursuit of progress. As the need to rely on sustainable energy resources increases, it is important to make optimal use of those resources. In the rapidly evolving world of renewable energy, digital twins are becoming one of the most transformative tools in shaping the future of solar power.
Digital Twins
A digital twin, the virtual representation of a physical system, allows us to mirror the behaviour of a physical system, in our case, solar power plants in real time. By leveraging data science and artificial intelligence, digital twins enable system operators and managers to monitor, predict, and optimize energy generation like never before. As the world looks toward a future driven by renewable energy, the use of digital twins will play a vital role in creating a smarter, more efficient and more resilient energy infrastructure.
Role of Digital twin technology in Solar Power Plants.
In solar power plants, digital twins play a pivotal role by enabling real-time monitoring, simulation, and analysis of the plant’s performance. These virtual models track the behaviour of solar panels, monitoring their power output, efficiency, and overall health. By continuously receiving data such as temperature, irradiance, and energy generation levels, the digital twin provides insights into the plant’s performance under varying conditions.
Moreover, digital twins allow for predictive simulations, which help operators anticipate how different scenarios, such as weather changes or equipment degradation, might affect the plant. This enables plant managers to proactively adjust operations, optimize energy generation, and address maintenance needs before problems escalate. Through the integration of data science and AI, digital twins in solar plants can also predict future performance, provide real-time alerts for faults, and automate maintenance scheduling, ensuring optimal efficiency and reducing downtime, which in-turn results in higher energy generation yields.
Advantages of implementing Digital Twins in Solar PV Industry.
Real-time Monitoring:
Digital twins provide operators with real-time visibility into the health and performance of solar assets, such as panels, inverters, and energy storage systems (both on-site and user-end batteries). By continuously syncing with sensors and data inputs from the plant, a digital twin replicates the actual conditions of each component. Operators can instantly detect performance anomalies, monitor energy output, track environmental factors like irradiance and temperature, and gain deeper insights into system efficiency. This real-time monitoring ensures that any issues or inefficiencies are identified promptly, allowing for immediate corrective actions and minimizing energy losses.
Energy Generation Prediction:
One of the most powerful applications of digital twins in solar PV is the ability to predict energy generation using AI-powered models. These predictive models take real-time weather data, historical energy production, and plant conditions to forecast future energy output. By incorporating variables such as solar irradiance, temperature, and equipment health, the digital twin can provide highly accurate predictions of how much energy the plant will generate in the coming hours or days. This information allows operators to better align energy production with grid demands and plan for fluctuations, ensuring smooth and swift energy distribution.
Predictive Maintenance:
Digital twins also play a pivotal role in optimizing maintenance operations. By analyzing data from multiple sensors and performance logs, digital twins can predict when specific components, such as inverters or panels, are likely to fail or degrade in efficiency. Predictive maintenance models flag potential issues before they lead to significant failures, allowing operators to schedule repairs and replacements at optimal times. This proactive approach minimizes downtime, prevents costly breakdowns, and extends the lifespan of critical assets, ultimately reducing operational costs and improving the plant’s overall reliability and operability.
Digital Twins in Solar Plants: Notable Applications
In the development of this digital twin for solar power plants, we have taken a comprehensive approach to enhance energy generation forecasting and fault detection. The project utilizes a rich dataset comprising various features, including irradiance, faults, ambient and module temperatures, energy generation in strings, and inverter efficiency. This dataset serves as the backbone for applying advanced forecasting and machine learning models.

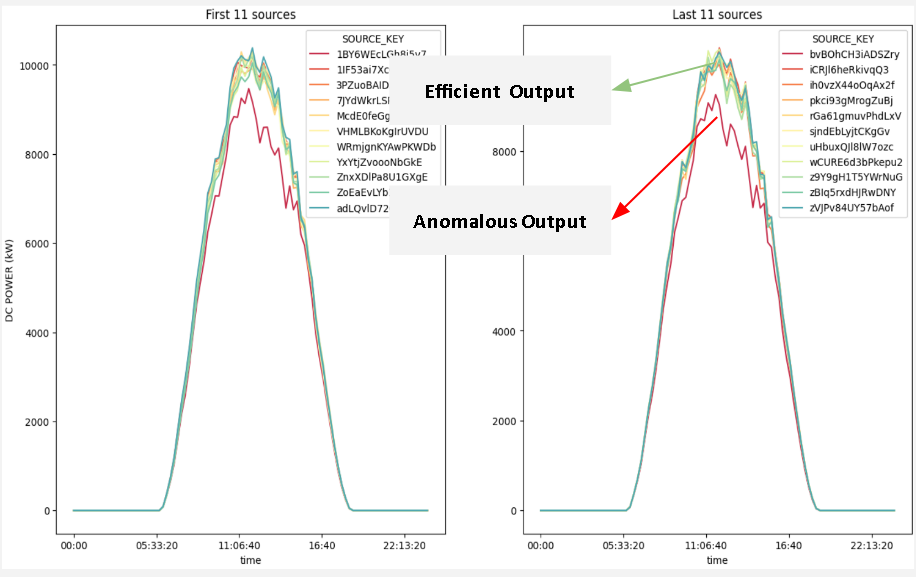

For energy generation forecasting, the SARIMA and Prophet models are primarily employed. SARIMA demonstrates high accuracy in its predictions, while Prophet offers a faster processing time, allowing for efficient energy generation forecasts under varying conditions. Additionally, exploratory data analysis is conducted to uncover patterns and trends that inform model performance. Some visualizations of forecasting models and exploratory data analysis are provided below.

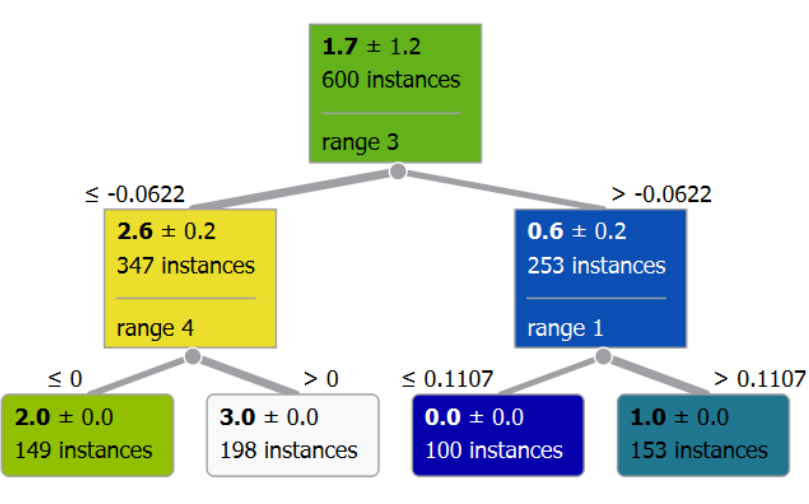

In terms of fault detection, a range of machine learning techniques, including AdaBoost, Support Vector Machines (SVMs), Neural Networks, and classification trees, are utilized. Among these methods, AdaBoost emerges as the most effective approach for identifying faults in the solar power plant, showcasing its robustness in this context.

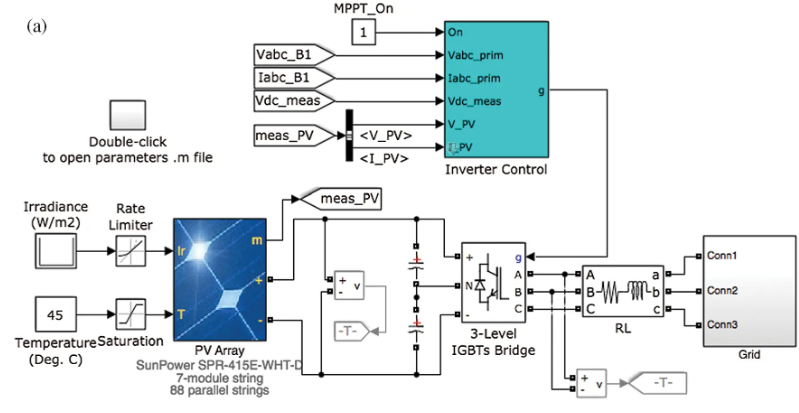

To simulate the plant environment, MATLAB Simulink is used to create a detailed representation that includes 88 strings of solar panels, along with all necessary components such as sensors, inverters, feeders, and loads. This simulation facilitates the generation of realistic data, enhancing the reliability of the digital twin and its associated models.
While this project successfully implements these advanced techniques, it is noteworthy that there exist additional systems in the market that demonstrate similar capabilities. SmartHelio offers a web application called Autopilot, which effectively monitors, predicts, and schedules maintenance for solar power plants. Meanwhile, PVsyst provides an integrated system with AutoCAD, allowing users to visualize how solar panels will be arranged on land while considering factors such as shadow coverage and weather conditions.
The Prospects of Digital Twins in the Solar Industry
The future of digital twins in the solar industry holds immense potential for scaling up solar energy production and enhancing operational efficiency. As the demand for renewable energy continues to grow, digital twins can play a crucial role in optimizing the performance of solar power plants.
Integration with smart grids represents a significant opportunity for digital twins. By providing a virtual representation of solar assets, they can facilitate real-time communication between solar power plants and the grid. This integration allows for more efficient energy distribution, load balancing, and improved demand response capabilities.
Emerging technologies such as the Internet of Things (IoT) and edge computing are set to enhance the effectiveness of digital twins in solar applications. IoT devices equipped with sensors can gather extensive data from solar panels and other equipment, feeding it directly into digital twin models. This real-time data can be processed locally through edge computing, allowing for faster analysis and immediate decision-making without relying on centralized data processing. Additionally, blockchain technology can play a crucial role in the future of digital twins by facilitating energy trading. With digital twins providing accurate, real-time information on energy production and consumption, blockchain can enable peer-to-peer energy trading platforms. This allows consumers to buy and sell excess energy generated from their solar systems directly, promoting greater energy independence and efficiency, in-short, opening various avenues for power trading.
Conclusion
As the Solar PV industry continues to evolve, the potential for digital twins will expand further, driven by advancements in IoT, edge computing, and blockchain technology. These innovations will facilitate smarter energy management, enhance grid integration, and promote efficient energy trading practices. The solar industry can meet growing energy demands while reducing its environmental footprint, paving the way for a cleaner, more efficient energy landscape.
References
https://www.tf.fau.eu/2024/02/general/digital-twin-accelerates-solar-research/
